Linn Ekstatik MC Cartridge

$11,995

SKU: 02996647540d Category:

Interested in this product? Call us on (08) 81225652 or message us here

The latest top of the range MC cartridge from Linn. The perfect match for the Ekos SE and LP12.

In order to make our best cartridge ever, we needed to look further afield, and at more varied materials. We conducted extensive experiments; auditioning different materials and configurations for the body, inserts, cantilever, suspension, windings and leads. The result is Ekstatik – the new jewel in the crown of the Linn cartridge range.

Our all-new, flagship cartridge, Ekstatik, sets a new bar for arm/cartridge synergy; its unique construction forges an harmonious synergy with Ekos SE; wicking away more unwanted resonances along the arm, and out through the sub-chassis.

In our search for ever better materials, our experiments led us to the implementation of aluminium-bronze inserts. Now a feature of Ekstatik, these inserts allow us to reap the sonic benefits we found this alloy to possess.

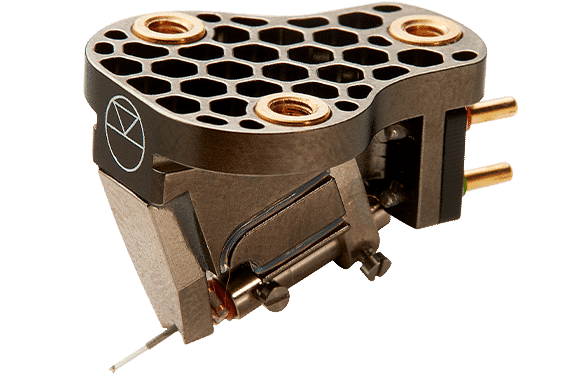

With a bespoke, honeycomb cut into the cartridge body, we have skeletonised Ekstatik so that overall mass is reduced to our preferred sweet spot of close to 7g.

A micro-ridge stylus on a sapphire cantilever makes for an extraordinarily responsive cartridge. The sapphire cantilever is far stiffer than boron or aluminium, resulting in less loss between the stylus and the generator.

The overall result is an agile, responsive cartridge with the added performance yielded from specifying these materials; masterfully matched in unique configurations.

Technical Specifications

All-new flagship moving coil cartridge


Stylus Type Micro-ridge
Cantilever Sapphire
Armature Square
Pin Connection Type Flying wire with termination clips – 1.2mm, gold
Mounting Points 3
Coil Wire Copper 4N
Output Voltage 0.45mV @ 3.54cm/s
Channel Balance at 1kHz <1dB
Channel Separation at 1kHz Better than 30dB
Load Resistance 100 Ω
Load Capacitance 1nF
Tracking Force 2.0 g
Cartridge Mass 7 g
